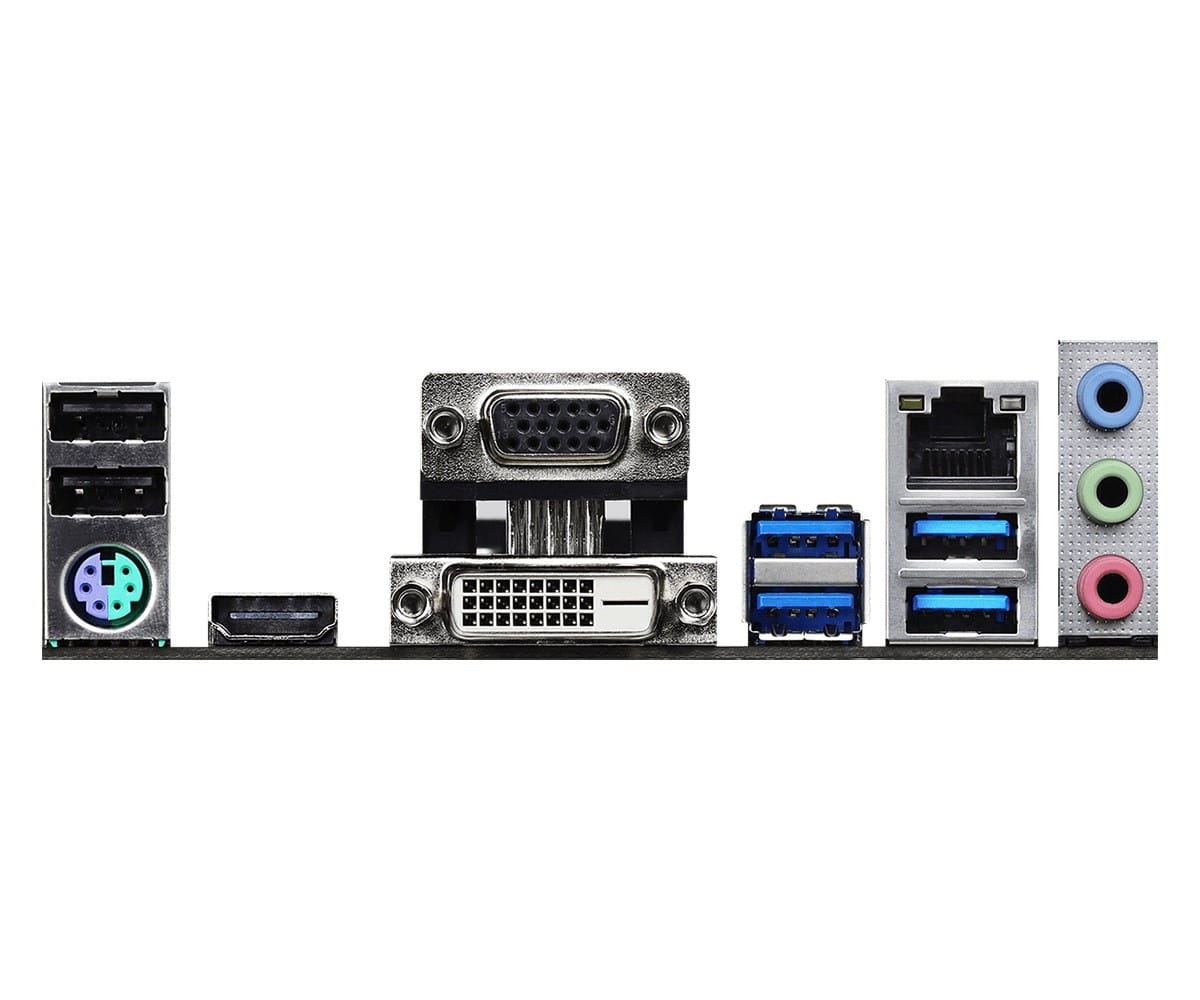

Złącza zewnętrzne |
4 x USB 3.0, 1 x RJ-45, 1 x MIC (różowy / microphone), 1 x Line Out (zielony / headphones), 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 1 x Line In (błękitny), 1 x PS/2 Klawiatura/Mysz Combo, 2 x USB 2.0 |

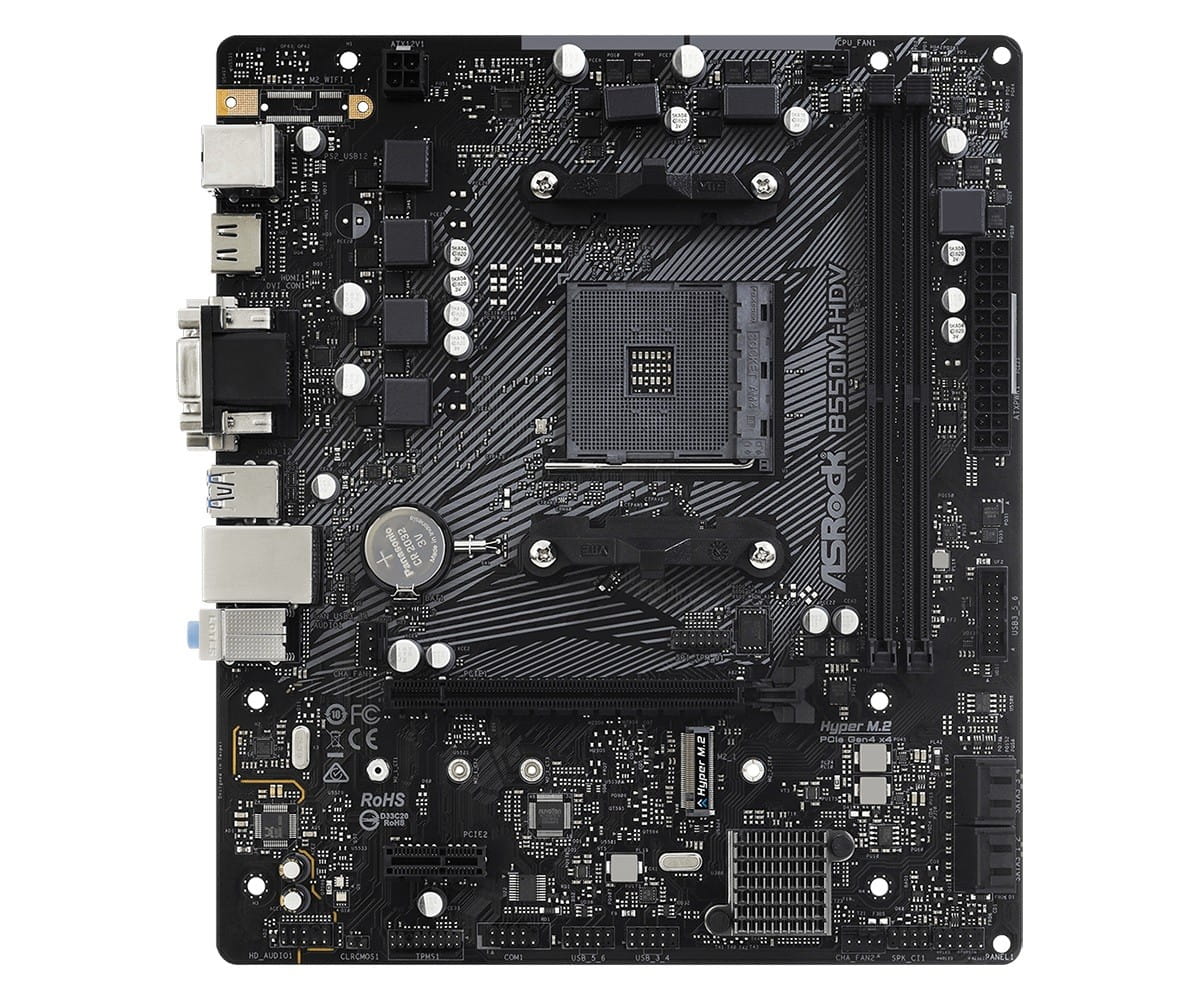

Złącza dostępne na płycie |
2 x USB 3.0, 2 x 4pin wentylator obudowy, 1 x Czujnik otwarcia obudowy (chassis intrusion), 1 x M.2, 4 x SATA III 6Gb/s, 4 x USB 2.0/1.1, 1 x 24pin ATX zasilanie, 1 x 4pin 12V zasilanie, 1 x 4pin wentylator procesora, 1 x TPM, 1 x Przedni panel audio, 1 x |
Obsługiwane systemy operacyjne |
Windows 11, Windows 10 |
Gniazda rozszerzeń |
1 x PCIe 4.0 x 16, 1 x PCIe 3.0 x 1 |
Oprogramowanie |
Software: ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI: ASRock Full HD UEFI ASRock Instant Flash |
Rodzina procesora |
AMD Ryzen |
Maks. wielkość pamięci |
64 |
Port / Złącze COM (szeregowy) |
Tak |
Interfejs sieciowy |
PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
Gniazdo procesora |
Socket AM4 |
Zintegrowany procesor |
Nie |
Producent chipsetu MB |
AMD |
Liczba gniazd DDR4 |
2 |
Częstotliwość szyny pamięci |
3466 MHz, 4333 MHz, 2133 MHz, 4266 MHz, 4400 MHz, 4200 MHz, 4133 MHz, 2400 MHz, 2667 MHz, 4600 MHz, 3733 MHz, 3200 MHz, 4000 MHz, 2933 MHz, 3800 MHz |
Maksymalna ilość urządzeń SATA |
4 |
RAID |
Tak |
Szczegółowe dane o interfejsach dysków/napędów |
RAID 0, RAID 1 and RAID 10 |
Grafika |
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB.** Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 2.1 |
Karta dźwiękowa |
7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection |
Interfejs sieciowy |
1 x 10/100/1000 Mbit/s |
Porty USB na tylnym panelu |
6 |
Porty USB do wyprowadzenia z płyty |
6 |
Funkcje specjalne |
ASRock Super Alloy Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
Bios |
256Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
Format płyty |
micro ATX |
Liczba portów USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 |
6 |
